Tutorial 4: Visualize results
[1]:
import os, warnings, torch
import torch.nn as nn
import scanpy as sc
import pandas as pd
from model.nicheTrans_img import *
from datasets.data_manager_SMA import SMA
from utils.utils import *
from utils.utils_dataloader import *
import matplotlib.pyplot as plt
warnings.filterwarnings("ignore")
from collections import defaultdict
from palettable.cartocolors.diverging import *
from palettable.scientific.diverging import *
Load dataset
[2]:
slide = 'V11L12-109_A1'
adata_path = '/home/wzk/ST_data/SMA_data/Zhikang'
msi_path = '/home/wzk/ST_data/SMA_data/Processed_data_v4'
rna_adata = sc.read_visium(path=os.path.join(adata_path, slide), count_file='filtered_feature_bc_matrix.h5')
msi_adata = sc.read_h5ad(os.path.join(msi_path, slide + '.h5ad'))
[3]:
coordiantes = []
for i in range(rna_adata.shape[0]):
coordiantes.append(str(rna_adata.obs['array_row'].values[i]) + '_' + str(rna_adata.obs['array_col'].values[i]) )
coordiantes = np.array(coordiantes)
rna_adata.obs['coordinates'] = coordiantes
Load args
[4]:
%run ./args/args_SMA.py
args = args
Create dataloader
[5]:
# create the dataloaders
dataset = SMA(path_img=args.path_img, rna_path=args.rna_path, msi_path=args.msi_path, n_top_genes=args.n_source, n_top_targets=args.n_target)
_, testloader = sma_dataloader(args, dataset)
------Calculating spatial graph...
The graph contains 12134 edges, 3120 cells.
3.8891 neighbors per cell on average.
------Calculating spatial graph...
The graph contains 24190 edges, 3120 cells.
7.7532 neighbors per cell on average.
------Calculating spatial graph...
The graph contains 11322 edges, 2918 cells.
3.8801 neighbors per cell on average.
------Calculating spatial graph...
The graph contains 22578 edges, 2918 cells.
7.7375 neighbors per cell on average.
------Calculating spatial graph...
The graph contains 10360 edges, 2675 cells.
3.8729 neighbors per cell on average.
------Calculating spatial graph...
The graph contains 20628 edges, 2675 cells.
7.7114 neighbors per cell on average.
=> SMA loaded
Dataset statistics:
------------------------------
subset | # num |
------------------------------
train | Without filtering 6038 spots from 2 slides
test | Without filtering 2675 spots from 1 slides
train | After filting 6005 spots from 2 slides
test | After filting 2655 spots from 1 slides
------------------------------
Model initialization
[ ]:
# create the model
source_dimension, target_dimension = dataset.rna_length, dataset.msi_length
model = NicheTrans_img(source_length=source_dimension, target_length=target_dimension, noise_rate=args.noise_rate, dropout_rate=args.dropout_rate)
model = nn.DataParallel(model).cuda()
model.load_state_dict(torch.load('NicheTrans_*_SMA_last.pth'))
model.eval()
DataParallel(
(module): NicheTrans_img(
(base): Sequential(
(0): Conv2d(3, 64, kernel_size=(7, 7), stride=(2, 2), padding=(3, 3), bias=False)
(1): BatchNorm2d(64, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
(2): ReLU(inplace=True)
(3): MaxPool2d(kernel_size=3, stride=2, padding=1, dilation=1, ceil_mode=False)
(4): Sequential(
(0): BasicBlock(
(conv1): Conv2d(64, 64, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
(bn1): BatchNorm2d(64, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
(relu): ReLU(inplace=True)
(conv2): Conv2d(64, 64, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
(bn2): BatchNorm2d(64, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
)
(1): BasicBlock(
(conv1): Conv2d(64, 64, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
(bn1): BatchNorm2d(64, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
(relu): ReLU(inplace=True)
(conv2): Conv2d(64, 64, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
(bn2): BatchNorm2d(64, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
)
)
(5): Sequential(
(0): BasicBlock(
(conv1): Conv2d(64, 128, kernel_size=(3, 3), stride=(2, 2), padding=(1, 1), bias=False)
(bn1): BatchNorm2d(128, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
(relu): ReLU(inplace=True)
(conv2): Conv2d(128, 128, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
(bn2): BatchNorm2d(128, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
(downsample): Sequential(
(0): Conv2d(64, 128, kernel_size=(1, 1), stride=(2, 2), bias=False)
(1): BatchNorm2d(128, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
)
)
(1): BasicBlock(
(conv1): Conv2d(128, 128, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
(bn1): BatchNorm2d(128, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
(relu): ReLU(inplace=True)
(conv2): Conv2d(128, 128, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
(bn2): BatchNorm2d(128, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
)
)
(6): Sequential(
(0): BasicBlock(
(conv1): Conv2d(128, 256, kernel_size=(3, 3), stride=(2, 2), padding=(1, 1), bias=False)
(bn1): BatchNorm2d(256, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
(relu): ReLU(inplace=True)
(conv2): Conv2d(256, 256, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
(bn2): BatchNorm2d(256, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
(downsample): Sequential(
(0): Conv2d(128, 256, kernel_size=(1, 1), stride=(2, 2), bias=False)
(1): BatchNorm2d(256, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
)
)
(1): BasicBlock(
(conv1): Conv2d(256, 256, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
(bn1): BatchNorm2d(256, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
(relu): ReLU(inplace=True)
(conv2): Conv2d(256, 256, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
(bn2): BatchNorm2d(256, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
)
)
(7): Sequential(
(0): BasicBlock(
(conv1): Conv2d(256, 512, kernel_size=(3, 3), stride=(2, 2), padding=(1, 1), bias=False)
(bn1): BatchNorm2d(512, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
(relu): ReLU(inplace=True)
(conv2): Conv2d(512, 512, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
(bn2): BatchNorm2d(512, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
(downsample): Sequential(
(0): Conv2d(256, 512, kernel_size=(1, 1), stride=(2, 2), bias=False)
(1): BatchNorm2d(512, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
)
)
(1): BasicBlock(
(conv1): Conv2d(512, 512, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
(bn1): BatchNorm2d(512, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
(relu): ReLU(inplace=True)
(conv2): Conv2d(512, 512, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
(bn2): BatchNorm2d(512, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
)
)
)
(img): Sequential(
(0): Linear(in_features=512, out_features=128, bias=True)
(1): BatchNorm1d(128, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
(2): LeakyReLU(negative_slope=0.01)
)
(pooling): AdaptiveAvgPool2d(output_size=(1, 1))
(encoder): NetBlock(
(noise_dropout): Dropout(p=0.2, inplace=False)
(linear_list): ModuleList(
(0): Linear(in_features=1159, out_features=512, bias=True)
(1): Linear(in_features=512, out_features=256, bias=True)
)
(bn_list): ModuleList(
(0): BatchNorm1d(512, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
(1): BatchNorm1d(256, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
)
(activation_list): ModuleList(
(0-1): 2 x LeakyReLU(negative_slope=0.01)
)
(dropout_list): ModuleList(
(0): Dropout(p=0.1, inplace=False)
)
)
(fusion_omic): Self_Attention(
(to_q): Sequential(
(0): Linear(in_features=256, out_features=256, bias=False)
)
(to_k): Sequential(
(0): Linear(in_features=256, out_features=256, bias=False)
)
(to_v): Linear(in_features=256, out_features=256, bias=False)
(to_out): Linear(in_features=256, out_features=256, bias=True)
(dropout): Dropout(p=0.1, inplace=False)
)
(ffn_omic): FeedForward(
(net): Sequential(
(0): Linear(in_features=256, out_features=1024, bias=True)
(1): GEGLU()
(2): Linear(in_features=512, out_features=256, bias=True)
(3): Dropout(p=0.0, inplace=False)
)
)
(ln1): LayerNorm((256,), eps=1e-05, elementwise_affine=True)
(ln2): LayerNorm((256,), eps=1e-05, elementwise_affine=True)
(predict_layers): ModuleList(
(0-30): 31 x Sequential(
(0): Linear(in_features=384, out_features=128, bias=True)
(1): BatchNorm1d(128, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
(2): LeakyReLU(negative_slope=0.01)
(3): Linear(in_features=128, out_features=1, bias=True)
)
)
(non_linear): Sequential(
(0): Linear(in_features=256, out_features=256, bias=True)
(1): LayerNorm((256,), eps=1e-05, elementwise_affine=True)
(2): LeakyReLU(negative_slope=0.01)
)
(dropout): Dropout(p=0.1, inplace=False)
(dropout_5): Dropout(p=0.5, inplace=False)
)
)
Model inference
[7]:
pd_dictionary, gt_dictionary = defaultdict(), defaultdict()
pd_value, gt_value = [], []
with torch.no_grad():
for _, (imgs, source, target, source_neightbors, _, samples) in enumerate(testloader):
source, target, source_neightbors = source.cuda(), target.cuda(), source_neightbors.cuda()
imgs = imgs.cuda()
outputs = model(imgs, source, source_neightbors)
outputs = torch.clip(outputs, min=0)
pd_value.append(outputs)
gt_value.append(target)
for i, sample in enumerate(samples):
file_name, coordiantes = sample.split('/')
pd_dictionary[coordiantes] = outputs[i].cpu().detach().numpy()
gt_dictionary[coordiantes] = target[i].cpu().detach().numpy()
df_pd = pd.DataFrame.from_dict(pd_dictionary, orient='index', columns=['pd_' + str(i) for i in dataset.target_panel])
df_gt = pd.DataFrame.from_dict(gt_dictionary, orient='index', columns=['gt_' + str(i) for i in dataset.target_panel])
Model evaluation
[8]:
from utils.evaluation import evaluator
pearson_sample_list, spearman_sample_list, _ = evaluator(df_pd.values, df_gt.values, training=False, panel=dataset.target_panel)
print(pearson_sample_list.mean())
print(spearman_sample_list.mean())
0.429459066159894
0.5002385392866205
Save the predictions to adata
[9]:
rna_adata.obs = rna_adata.obs.reset_index().merge(df_gt, left_on='coordinates', right_index=True, how='left').set_index('index')
rna_adata.obs = rna_adata.obs.reset_index().merge(df_pd, left_on='coordinates', right_index=True, how='left').set_index('index')
rna_adata = rna_adata[~np.isnan(rna_adata.obs['gt_390.16864'].values)]
Visualization
[10]:
index = 9
name = dataset.target_panel[index]
key_pd, key_gt = 'pd_' + name, 'gt_' + name
temp_array_gt = rna_adata.obs[key_gt].values.copy()
temp_array_pd = rna_adata.obs[key_pd].values.copy()
temp_array_pd = np.exp(temp_array_pd) -1
temp_array_gt = np.exp(temp_array_gt) -1
# min_value = np.nanmin(temp_array_pd)
# filter out the abnormal spots
target_value = np.nanmean(temp_array_gt) - 8 * np.nanstd(temp_array_gt)
temp_mask = temp_array_gt < target_value
temp_array_gt[temp_mask] = None
key_norm = 'norm_' + name
rna_adata.obs[key_norm] = (temp_array_gt - np.nanmin(temp_array_gt)) / (np.nanmax(temp_array_gt) - np.nanmin(temp_array_gt))
pd_norm_name = 'pd_norm_' + name
rna_adata.obs[pd_norm_name] = (temp_array_pd - np.nanmin(temp_array_pd)) / (np.nanmax(temp_array_pd) - np.nanmin(temp_array_pd))
################

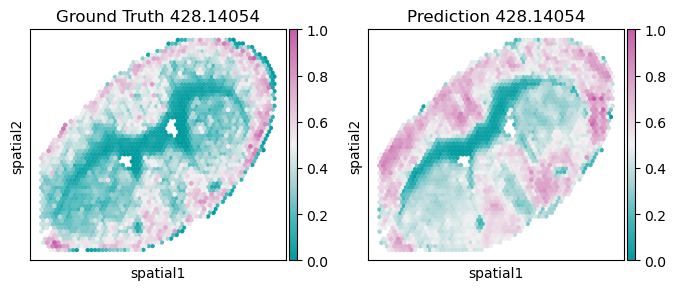

fig, axs = plt.subplots(1, 2, figsize=(8, 3))
sc.pl.embedding(rna_adata, basis='spatial', color=key_norm, title=f'Ground Truth {name}', ax=axs[0], show=False, cmap=Tropic_7.mpl_colormap)
sc.pl.embedding(rna_adata, basis='spatial', color=pd_norm_name, title=f'Prediction {name}', ax=axs[1], show=False, cmap=Tropic_7.mpl_colormap)
[10]:
<Axes: title={'center': 'Prediction 428.14054'}, xlabel='spatial1', ylabel='spatial2'>
[11]:
index = 25
name = dataset.target_panel[index]
key_pd, key_gt = 'pd_' + name, 'gt_' + name
temp_array_gt = rna_adata.obs[key_gt].values.copy()
temp_array_pd = rna_adata.obs[key_pd].values.copy()
temp_array_pd = np.exp(temp_array_pd) -1
temp_array_gt = np.exp(temp_array_gt) -1
# min_value = np.nanmin(temp_array_pd)
# filter out the abnormal spots
target_value = np.nanmean(temp_array_gt) - 8 * np.nanstd(temp_array_gt)
temp_mask = temp_array_gt < target_value
temp_array_gt[temp_mask] = None
key_norm = 'norm_' + name
rna_adata.obs[key_norm] = (temp_array_gt - np.nanmin(temp_array_gt)) / (np.nanmax(temp_array_gt) - np.nanmin(temp_array_gt))
pd_norm_name = 'pd_norm_' + name
rna_adata.obs[pd_norm_name] = (temp_array_pd - np.nanmin(temp_array_pd)) / (np.nanmax(temp_array_pd) - np.nanmin(temp_array_pd))
################

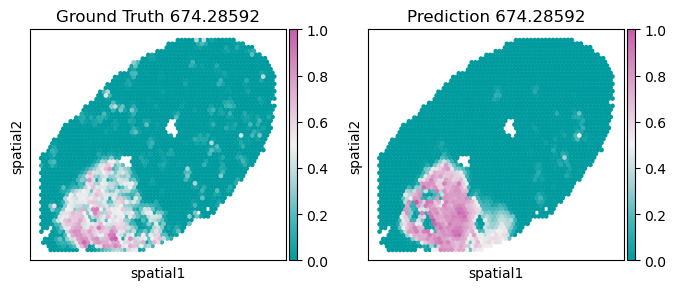

fig, axs = plt.subplots(1, 2, figsize=(8, 3))
sc.pl.embedding(rna_adata, basis='spatial', color=key_norm, title=f'Ground Truth {name}', ax=axs[0], show=False, cmap=Tropic_7.mpl_colormap)
sc.pl.embedding(rna_adata, basis='spatial', color=pd_norm_name, title=f'Prediction {name}', ax=axs[1], show=False, cmap=Tropic_7.mpl_colormap)
[11]:
<Axes: title={'center': 'Prediction 674.28592'}, xlabel='spatial1', ylabel='spatial2'>
Generate new adata for potential analysis, e.g., multi-omics domain identification
[12]:
gt_list = defaultdict(list)
pd_list = defaultdict(list)
for index, name in enumerate(rna_adata.obs.columns.tolist()):
if name[0:2] == 'gt':
gt_list[name.split('_')[-1]] = rna_adata.obs[name].values
elif name[0:2] == 'pd':
pd_list[name.split('_')[-1]] = rna_adata.obs[name].values
gt_dataframe = pd.DataFrame(gt_list)
pd_dataframe = pd.DataFrame(pd_list)
gt_adata = sc.AnnData(gt_dataframe)
pd_adata = sc.AnnData(pd_dataframe)
gt_adata.obsm['spatial'] = rna_adata.obsm['spatial']
pd_adata.obsm['spatial'] = rna_adata.obsm['spatial']
gt_adata.obs.index = rna_adata.obs.index.values
pd_adata.obs.index = rna_adata.obs.index.values
