Tutorial 8: Visualize results

import os, warnings, torch

import torch.nn as nn
import scanpy as sc
import pandas as pd

from model.nicheTrans_img import *
from datasets.data_manager_human_lymph_node import Lymph_node

from utils.utils import *
from utils.utils_dataloader import *
import matplotlib.pyplot as plt

warnings.filterwarnings("ignore")


from palettable.cartocolors.diverging import *
from palettable.scientific.diverging import *

Load dataset

rna_path = '/home/wzk/ST_data/2024_nmethods_SpatialGlue_Human_lymph_node_3slides/slice2/s2_adata_rna.h5ad'
protein_path = '/home/wzk/ST_data/2024_nmethods_SpatialGlue_Human_lymph_node_3slides/slice2/s2_adata_adt.h5ad'

adata_rna_testing = sc.read_h5ad(rna_path)
adata_protein_testing = sc.read_h5ad(protein_path)

Load args

%run ./args/args_human_lymph_node.py
args = args

Create dataloader

# create the dataloaders
dataset = Lymph_node(adata_path=args.adata_path, n_top_genes=args.n_source)
trainloader, testloader = human_node_dataloader(args, dataset)

------Calculating spatial graph...
The graph contains 13638 edges, 3484 cells.
3.9145 neighbors per cell on average.
------Calculating spatial graph...
The graph contains 27174 edges, 3484 cells.
7.7997 neighbors per cell on average.
------Calculating spatial graph...
The graph contains 13138 edges, 3359 cells.
3.9113 neighbors per cell on average.
------Calculating spatial graph...
The graph contains 26192 edges, 3359 cells.
7.7976 neighbors per cell on average.
=> Human lymph node loaded
Dataset statistics:
  ------------------------------
  subset   | # num |
  ------------------------------
  train    |  After filting  3484 spots
  test     |  After filting  3359 spots
  ------------------------------

Model initialization

# create the model
source_dimension, target_dimension = dataset.rna_length, dataset.protein_length
model = NicheTrans(source_length=source_dimension, target_length=target_dimension, noise_rate=args.noise_rate, dropout_rate=args.dropout_rate)
model = nn.DataParallel(model).cuda()

model.load_state_dict(torch.load('NicheTrans_human_lymph_node_last.pth'))
model.eval()

DataParallel(
  (module): NicheTrans(
    (encoder): NetBlock(
      (noise_dropout): Dropout(p=0.5, inplace=False)
      (linear_list): ModuleList(
        (0): Linear(in_features=909, out_features=512, bias=True)
        (1): Linear(in_features=512, out_features=256, bias=True)
      )
      (bn_list): ModuleList(
        (0): BatchNorm1d(512, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
        (1): BatchNorm1d(256, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
      )
      (activation_list): ModuleList(
        (0-1): 2 x LeakyReLU(negative_slope=0.01)
      )
      (dropout_list): ModuleList(
        (0): Dropout(p=0.1, inplace=False)
      )
    )
    (fusion_omic): Self_Attention(
      (to_q): Sequential(
        (0): Linear(in_features=256, out_features=256, bias=False)
      )
      (to_k): Sequential(
        (0): Linear(in_features=256, out_features=256, bias=False)
      )
      (to_v): Linear(in_features=256, out_features=256, bias=False)
      (to_out): Linear(in_features=256, out_features=256, bias=True)
      (dropout): Dropout(p=0.1, inplace=False)
    )
    (ffn_omic): FeedForward(
      (net): Sequential(
        (0): Linear(in_features=256, out_features=1024, bias=True)
        (1): GEGLU()
        (2): Linear(in_features=512, out_features=256, bias=True)
        (3): Dropout(p=0.0, inplace=False)
      )
    )
    (ln1): LayerNorm((256,), eps=1e-05, elementwise_affine=True)
    (ln2): LayerNorm((256,), eps=1e-05, elementwise_affine=True)
    (predict_layers): ModuleList(
      (0-30): 31 x Sequential(
        (0): Linear(in_features=256, out_features=128, bias=True)
        (1): BatchNorm1d(128, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
        (2): LeakyReLU(negative_slope=0.01)
        (3): Linear(in_features=128, out_features=1, bias=True)
      )
    )
    (non_linear): Sequential(
      (0): Linear(in_features=256, out_features=256, bias=True)
      (1): LayerNorm((256,), eps=1e-05, elementwise_affine=True)
      (2): LeakyReLU(negative_slope=0.01)
    )
    (dropout): Dropout(p=0.1, inplace=False)
    (dropout_5): Dropout(p=0.5, inplace=False)
    (base): Sequential(
      (0): Conv2d(3, 64, kernel_size=(7, 7), stride=(2, 2), padding=(3, 3), bias=False)
      (1): BatchNorm2d(64, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
      (2): ReLU(inplace=True)
      (3): MaxPool2d(kernel_size=3, stride=2, padding=1, dilation=1, ceil_mode=False)
      (4): Sequential(
        (0): BasicBlock(
          (conv1): Conv2d(64, 64, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
          (bn1): BatchNorm2d(64, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
          (relu): ReLU(inplace=True)
          (conv2): Conv2d(64, 64, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
          (bn2): BatchNorm2d(64, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
        )
        (1): BasicBlock(
          (conv1): Conv2d(64, 64, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
          (bn1): BatchNorm2d(64, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
          (relu): ReLU(inplace=True)
          (conv2): Conv2d(64, 64, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
          (bn2): BatchNorm2d(64, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
        )
      )
      (5): Sequential(
        (0): BasicBlock(
          (conv1): Conv2d(64, 128, kernel_size=(3, 3), stride=(2, 2), padding=(1, 1), bias=False)
          (bn1): BatchNorm2d(128, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
          (relu): ReLU(inplace=True)
          (conv2): Conv2d(128, 128, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
          (bn2): BatchNorm2d(128, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
          (downsample): Sequential(
            (0): Conv2d(64, 128, kernel_size=(1, 1), stride=(2, 2), bias=False)
            (1): BatchNorm2d(128, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
          )
        )
        (1): BasicBlock(
          (conv1): Conv2d(128, 128, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
          (bn1): BatchNorm2d(128, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
          (relu): ReLU(inplace=True)
          (conv2): Conv2d(128, 128, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
          (bn2): BatchNorm2d(128, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
        )
      )
      (6): Sequential(
        (0): BasicBlock(
          (conv1): Conv2d(128, 256, kernel_size=(3, 3), stride=(2, 2), padding=(1, 1), bias=False)
          (bn1): BatchNorm2d(256, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
          (relu): ReLU(inplace=True)
          (conv2): Conv2d(256, 256, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
          (bn2): BatchNorm2d(256, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
          (downsample): Sequential(
            (0): Conv2d(128, 256, kernel_size=(1, 1), stride=(2, 2), bias=False)
            (1): BatchNorm2d(256, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
          )
        )
        (1): BasicBlock(
          (conv1): Conv2d(256, 256, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
          (bn1): BatchNorm2d(256, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
          (relu): ReLU(inplace=True)
          (conv2): Conv2d(256, 256, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
          (bn2): BatchNorm2d(256, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
        )
      )
      (7): Sequential(
        (0): BasicBlock(
          (conv1): Conv2d(256, 512, kernel_size=(3, 3), stride=(2, 2), padding=(1, 1), bias=False)
          (bn1): BatchNorm2d(512, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
          (relu): ReLU(inplace=True)
          (conv2): Conv2d(512, 512, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
          (bn2): BatchNorm2d(512, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
          (downsample): Sequential(
            (0): Conv2d(256, 512, kernel_size=(1, 1), stride=(2, 2), bias=False)
            (1): BatchNorm2d(512, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
          )
        )
        (1): BasicBlock(
          (conv1): Conv2d(512, 512, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
          (bn1): BatchNorm2d(512, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
          (relu): ReLU(inplace=True)
          (conv2): Conv2d(512, 512, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
          (bn2): BatchNorm2d(512, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
        )
      )
    )
    (img): Sequential(
      (0): Linear(in_features=512, out_features=128, bias=True)
      (1): BatchNorm1d(128, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
      (2): LeakyReLU(negative_slope=0.01)
    )
    (pooling): AdaptiveAvgPool2d(output_size=(1, 1))
  )
)

Model inference

pd_value, gt_value = [], []

with torch.no_grad():
    for _, (rna, protein, rna_neighbors, _) in enumerate(testloader):

        rna, protein, rna_neighbors = rna.cuda(), protein.cuda(), rna_neighbors.cuda()
        source, target, source_neightbors = rna, protein, rna_neighbors

        outputs = model(source, source_neightbors)

        pd_value.append(outputs)
        gt_value.append(target)

pd_value = torch.cat(pd_value, dim=0).cpu().numpy()
gt_value = torch.cat(gt_value, dim=0).cpu().numpy()

Model evaluation

from utils.evaluation import evaluator
pearson_sample_list, spearman_sample_list, _ = evaluator(pd_value, gt_value, training=False, panel=dataset.target_panel)

print(pearson_sample_list.mean())
print(spearman_sample_list.mean())

0.43594293361628444
0.4552628468735832

pd_value = np.exp((pd_value * dataset.std) + dataset.mean)
gt_value = np.exp((gt_value * dataset.std) + dataset.mean)

proteins = adata_protein_testing.var['gene_ids'].values

for index, protein in enumerate(proteins):
    adata_protein_testing.obs['pd_' + protein ] = pd_value[:, index]
    adata_protein_testing.obs['gt_' + protein ] = gt_value[:, index]

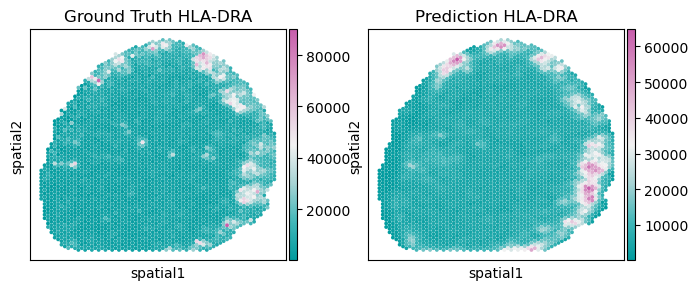

protein = 'HLA-DRA'

fig, axs = plt.subplots(1, 2, figsize=(8, 3))
sc.pl.embedding(adata_protein_testing, basis='spatial', color='gt_' + protein, title=f'Ground Truth {protein}', ax=axs[0], show=False, cmap=Tropic_7.mpl_colormap, size=30, vmax=90000)
sc.pl.embedding(adata_protein_testing, basis='spatial', color='pd_' + protein, title=f'Prediction {protein}', ax=axs[1], show=False, cmap=Tropic_7.mpl_colormap, size=30)

<Axes: title={'center': 'Prediction HLA-DRA'}, xlabel='spatial1', ylabel='spatial2'>

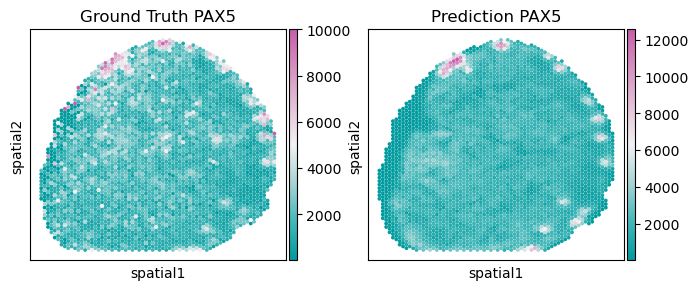

protein = 'PAX5'

fig, axs = plt.subplots(1, 2, figsize=(8, 3))
sc.pl.embedding(adata_protein_testing, basis='spatial', color='gt_' + protein, title=f'Ground Truth {protein}', ax=axs[0], show=False, cmap=Tropic_7.mpl_colormap, size=30)
sc.pl.embedding(adata_protein_testing, basis='spatial', color='pd_' + protein, title=f'Prediction {protein}', ax=axs[1], show=False, cmap=Tropic_7.mpl_colormap, size=30)

<Axes: title={'center': 'Prediction PAX5'}, xlabel='spatial1', ylabel='spatial2'>
